5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

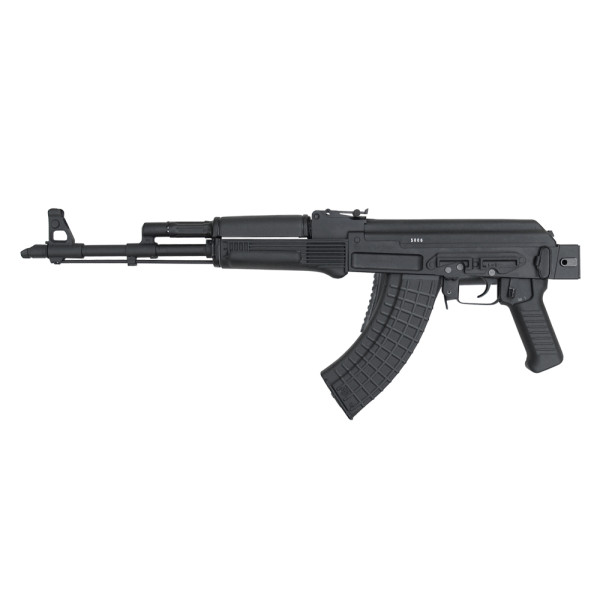

5.56x45 mm and 7.62x39 mm AR-M1F41

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

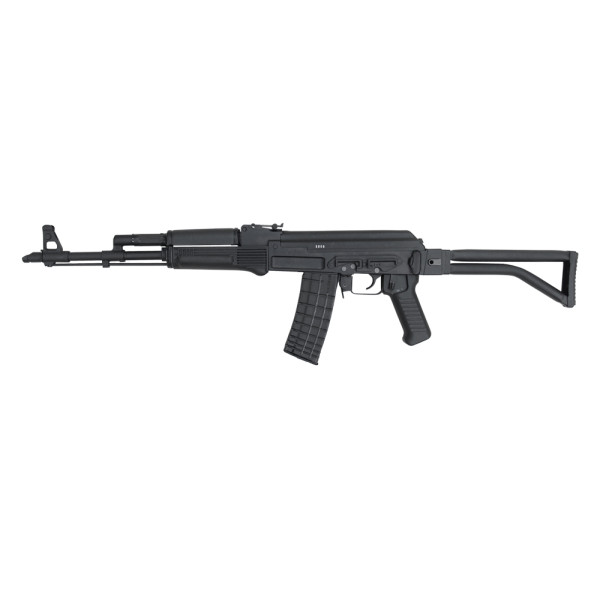

5.56x45 mm and 7.62x39mm ARSENAL Assault Rifles AR-M1F41 with folding butt

7.62x39 mm AR-M1F41
NSN: 1005-50-001-1860

The 5.56 mm and 7.62 mm AR-M1F41 are a highly effective automatic weapons, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

Receiver, made from hot die forged solid blank followed by milling operations;
Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of
the material;
Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
Tritium Self-illuminated Night Sight (3-dot sight system) - extra, used for quick target acquisition at low-light conditions;
The Butt is metal right-side folding.

The Assault Rifle design allows the attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL or
GP-25 KASTYOR Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

Luminous spots on the sights;
front sight adjusting kit (in the ratio 1:10);
black polymer magazines for 40 cartridges;
set for magazines coupling;
knife scissors;
blank fire attachment;
sight carrier;

ACCESSORIES
Cleaning rod
Sling
Box with accessories (brush, drift, scourer, slush brush, screwdriver)
Magazine - 4 pcs.
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380x530x387
Gross Weight of the wooden case, kg	88
Volume of the wooden case, m³	0.28

Specifications	AR-M1F41
Calibre, mm	5.56	7.62
Cartridge, mm	5.56x45	7.62x39
Fire mode	Single and automatic	Single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s
● Bullet type M 193	910	710
● Bullet type SS 109	870	-
Sighting range, m	800	800
Maximum firing range, m	1350	1350
Effective firing range, m	500	400
Magazine capacity, rounds	30	30
Barrel length, mm	415	415
Sight radius, mm	378	378
Overall length, mm
● With extended butt	925	925
● With folded butt in travelling position	680	680
Weight, kg
● Rifle without magazine	3.76	3.76
● Loaded magazine	0.58	0.58
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
