Home / Military & Law Enforcement / Weapons / Assault Rifles / 5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm) / 5.56x45 mm and 7.62x39 mm AR-M5T

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

5.56x45 mm and 7.62x39 mm AR-M5T

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

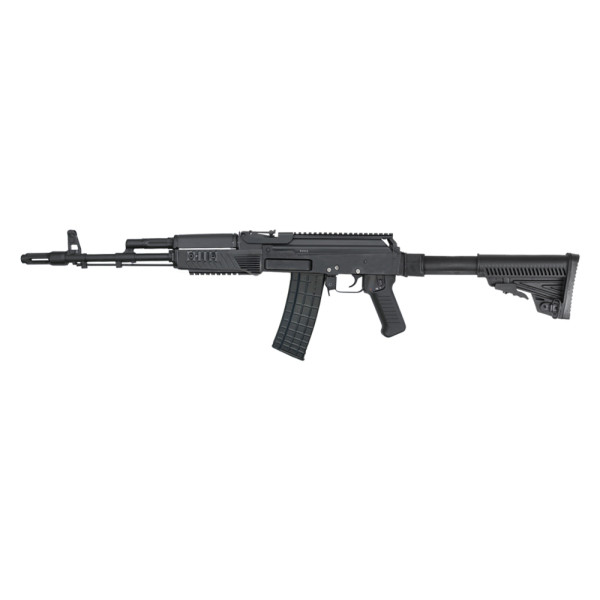

5.56x45 mm ARSENAL Assault Rifle AR-M5T with telescopic butt

NSN: 1005-50-001-4434

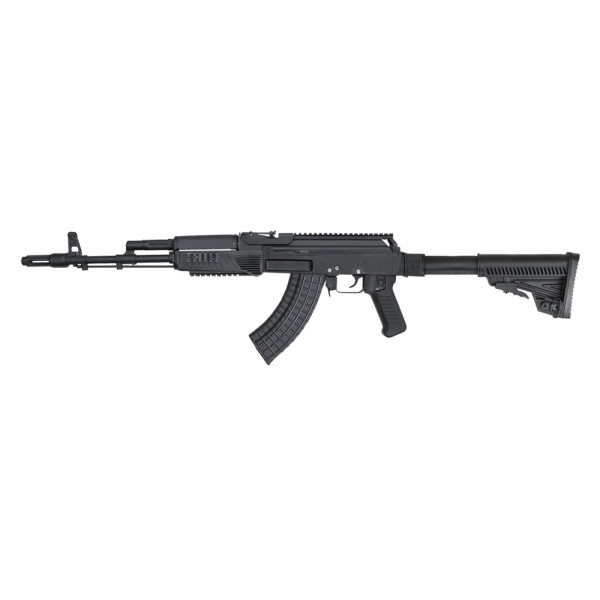

7.62x39 mm ARSENAL Assault Rifle AR-M5T with telescopic butt

NSN:1005-50-001-4431

The 5.56 mm AR-M5T and 7.62 mm AR-M5T are highly effective automatic weapon, used as armament of army troops, reconnoitring detachments, special antiterrorist and police forces, and security services.

Main Features:

Gas operated automatic rifle.
Fire mode – single, automatic.
Hot-die forged and milled receiver for increased durability and service life.
Chromium plated Barrel bore and chamber.
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 30-round Magazine – heat/cold resistant with antiglare matte finish.
4-position telescopic plastic butt.
MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions).
MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes.
Ambidextrous Safety Lever for rapid fire mode switchover;
Self-illuminated Tritium sights for faster target acquisition at low-light conditions;
Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

20/30 round translucent magazine (for 5.56x45 mm);
black polymer magazines for 40 cartridges (for 7.62x39 mm);
front sight adjusting kit (in the ratio 1:10);
set for magazines coupling;
blank fire attachment;
knife scissors;
operating sling;
silencer.

ACCESSORIES
Cleaning rod
Parade Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine - 4 pcs
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380x572x387
Gross Weight of the wooden case, kg	95
Volume of the wooden case, m3	0.31

Specifications	AR-M5T	AR-M5T
Calibre, mm	5.56	7.62
Cartridge, mm	5.56x45	7.62x39
Fire mode	single and automatic	single and automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s		710
Muzzle velocity, m/s
● Bullet type M 193	910	-
● Bullet type SS 109	870	-
Sighting range, m	up to 800	800
Maximum firing range, m	1350	1350
Effective firing range, m	500	400
Magazine capacity, rounds	30	30
Barrel length, mm	415	415
Sight radius, mm	370	370
Overall length, mm
● With extended butt	1045	1045
● With folded butt in travelling position	945	945
Weight, kg
● Rifle without magazine	4.2	3.65
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

5.56x45 mm and 7.62x39 mm AR-M5T

Overview

Features

Specifications

Accessories

Packing

Main Features:
