5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

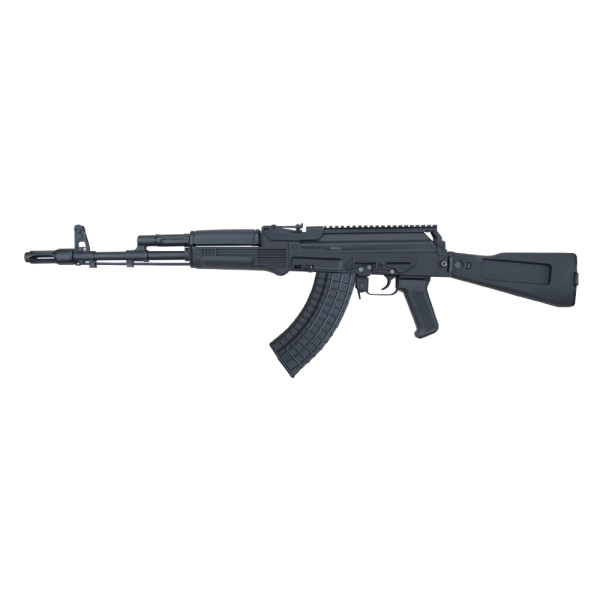

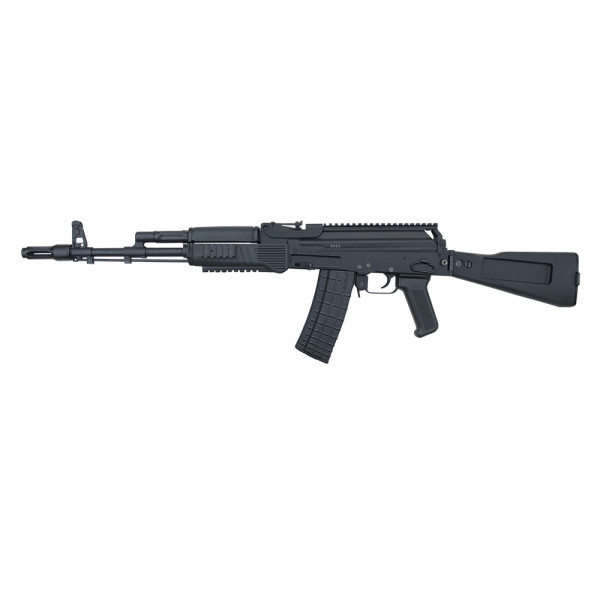

5.56x45 mm and 7.62x39 mm AR-M75F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Packing

5.56x45 mm ARSENAL Assault Rifles AR-M75F with folding butt
NSN: 1005-50-001-4760

7.62x39 mm ARSENAL Assault Rifles AR-M75F with folding butt
NSN: 1005-50-001-4619

The 5.56 mm AR-M75F and 7.62 mm AR-M75F are highly effective automatic weapons, used as armament of army troops, reconnoitring
detachments, special antiterrorist and police forces, and security services.

Main Features:

Gas operated automatic rifle;
Fire mode - single and automatic;
Hot-die forged and milled receiver for increased durability and service life;
Chromium plated Barrel bore and chamber;
MIL-STD (1913) Picatinny rails can be integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions);
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, Butt and 30-round Magazine – heat/cold resistant
with antiglare matte finish;
Left-side folding FRP buttstock with a quick release/lock mechanism;
MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes ;
Provision for attachment of 40x46mm ARSENAL UBGL-M6, UBGL-M8 and 40mm ARSENAL UBGL or GP-25 KASTYOR and GP-30
Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

luminous spots on the sights;
20/30 round translucent magazine (for 5.56x45 mm);
black polymer magazine for 40 cartridges (for 7.62x39 mm);
front sight adjusting kit (in the ratio 1:10);
set for magazines coupling;
blank fire attachment;
knife scissors.
silencer

ACCESSORIES
Cleaning rod
Cleaning rod extension
Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/ scourer (cal. 7.62), screwdriver)
Magazine 4 pcs
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can

Packing
Number of rifles in one wooden case	10
Case dimensions, mm	1380x572x387
Gross Weight of the wooden case, kg	94
Volume of the wooden case, m³	0.28

Specifications	AR-M75F	AR-M75F
Calibre, mm	5.56	7.62
Cartridge, mm	5.56 x 45	7.62 x 39
Fire mode	single, automatic	single, automatic
Rate of fire, rounds/min	600	600
Practical rate, rounds/min
● Automatic fire	up to 100	up to 100
● Single fire	up to 40	up to 40
Muzzle velocity, m/s	-	710
Muzzle velocity, m/s
● Bullet type M 193	910	-
● Bullet type SS 109	870	-
Sighting range, m	up to 800	800
Maximum firing range, m	1350	1350
Effective firing range, m	500	400
Magazine capacity, rounds	30	30
Barrel length, mm	415	415
Sight radius, mm	370	370
Overall length, mm
● With extended butt	965	965
● With folded butt in travelling position	720	720
Weight, kg
● Rifle without magazine	4.1	4.1
● Loaded magazine	0.58	0.72
System life, rounds	15 000	15 000
Principle of function	gas operated	gas operated
