Home / Military & Law Enforcement / Weapons / Assault Rifles / 5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm) / 5.56x45 mm and 7.62x39 mm AR-M9F

5.56x45 & 7.62x39 mm Assault Rifles (barrel length: 415 mm)

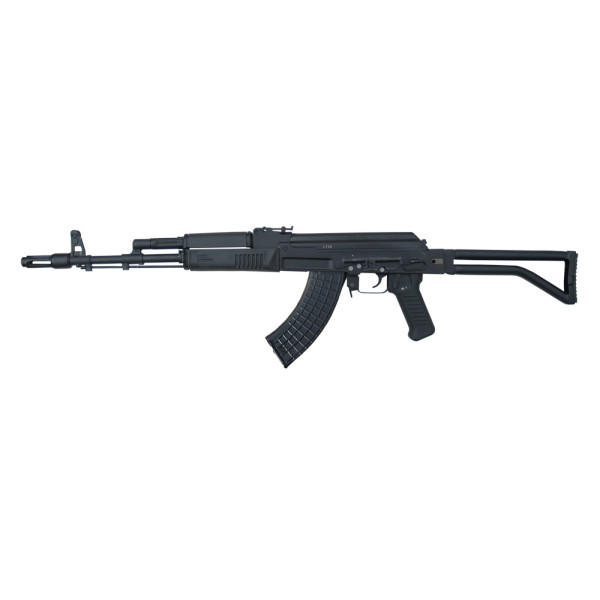

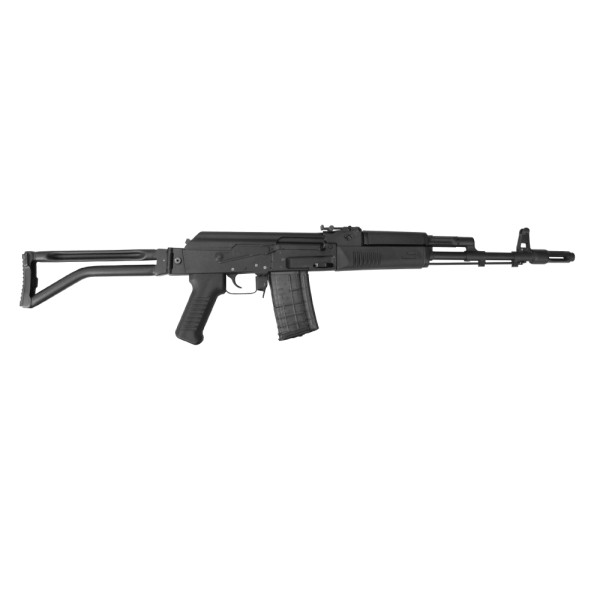

5.56x45 mm and 7.62x39 mm AR-M9F

5.56x45 mm and 7.62x39 mm AR-M9F
5.56x45 mm and 7.62x39 mm AR-M9F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

5.56x45 mm ARSENAL Assault Rifles AR-M9F with folding butt
NSN: 1005-50-000-0411

7.62x39 mm ARSENAL Assault Rifles AR-M9F with folding butt
NSN: 1005-50-001-1861


The 5.56 mm AR-M9F and 7.62 mm AR-M9F are highly effective automatic weapons, used as armament of army troops, reconnoitring
detachments, special antiterrorist and police forces, and security services.

Main Features:

  • Receiver, made from hot die forged solid blank followed by milling operations;
  • Chromium plated Barrel, manufactured by the method of cold radial forging, providing bigger hardness and better structure of the material;
  • Arcuate staggered Magazine, manufactured from glass fiber reinforced polycaproamide;
  • Lower hand guard, Upper hand guard, and Pistol grip, made from glass fiber reinforced polycaproamide;
  • Tritium Self-illuminated Night Sight (3-dot sight system) - extra, used for quick target acquisition at low-light conditions;
  • Metal right-side folding butt;
  • Rail on the receiver, on which via a Sight Carrier with a Picatinny rail, different kinds of Sighting Devices can be attached;
  • Additional left fire mode Selector Lever, for rapid fire mode changing and for convenience of left-handed shooters.
  • The Assault Rifle design allows the attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL or GP-25 KASTYOR
    Underbarrel Grenade Launchers, and firing with them.
Optional Extras (Paid Separately):
  • luminous spots on the sights
  • 20-round translucent polymer magazine( for 5.56x45mm);
  • 30-round black polymer magazine(for 5.56x45mm);
  • black polymer magazines for 5,10 and 40 cartridges (for 7.62x39 mm)
  • front sight adjusting kit (in the ratio 1:10);
  • set for magazines coupling;
  • blank fire attachment;
  • knife scissors;
  • operation sling.
  • silencer
  • sight carrier
ACCESSORIES
Cleaning rod
Cleaning rod extender
Parade Sling
Box with accessories (brush, drift, slush brush (cal. 5.56)/scourer (cal. 7.62), screwdriver)
Magazine - 4 pcs
● 5.56x45 mm & 7.62x39 mm
Bag for magazines
Oil can
Packing
Number of rifles in one wooden case10
Case dimensions, mm1380x530x387
Gross Weight of the wooden case, kg86
Volume of the wooden case, m30.28
Specifications
AR-M9FAR-M9F
Calibre,mm5.567.62
Cartridge, mm5.56 x 457.62 x 39
Fire modesingle and automaticsingle and automatic
Rate of fire, rounds/min600600
Practical rate, rounds/min
● Automatic fireup to 100up to 100
● Single fireup to 40up to 40
Muzzle velocity, m/s910710
Muzzle velocity, m/s
● Bullet type M 193870-
● Bullet type SS 109-
Sighting range, mup to 800up to 800
Maximum effective firing range, m13501350
Effective firing range, m500400
Magazine capacity, rounds3030
Barrel length, mm415415
Sight radius, mm370370
Overall length, mm
● With extended butt970970
● With folded butt in travelling position720720
Weight, kg
● Rifle without magazine3.853.85
● Loaded magazine0.580.72
System life, rounds15 00015 000
Principle of functiongas operatedgas operated
