5.56x45 mm AR-M5F

5.56x45 mm AR-M5F

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

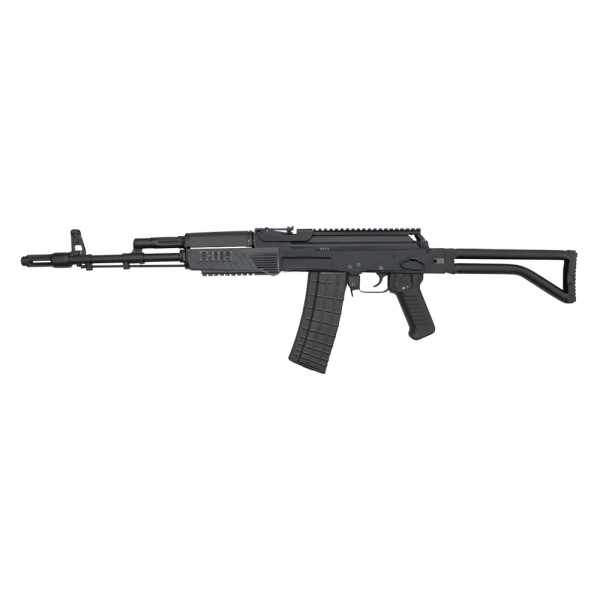

5.56x45 mm  ARSENAL Assault Rifle AR-M5F with folding butt

NSN: 1005-50-001-4776

The 5.56 mm   AR-M5F is a highly effective automatic weapon, used as armament of combat crews, reconnoitring detachments, special antiterrorist and police troops, and security services.

Main Features:

  • Gas operated automatic rifle.
  • Fire mode - single and automatic.
  • Hot-die forged and milled receiver for increased durability and service life.
  • Chromium plated Barrel bore and chamber.
  • FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip,  30-round Magazine – heat/cold resistant with antiglare matte finish.
  • Right-side folding tubular steel enforced butt with a quick release/lock mechanism.
  • MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions).
  • MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes
  • Ambidextrous Safety Lever for rapid fire mode
  • Provision for attachment of various Under Barrel Grenade Launchers (UBGL), such as 40x46mm Arsenal UBGL-M6, 40x46mm Arsenal UBGL-M8 and 40 mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them .
Optional Extras (Paid Separately):
  • 20-round translucent polymer magazine;
  • 30-round black polymer magazine;
  • front sight adjusting kit (in the ratio 1:10);
  • set for magazines coupling;
  • blank fire attachment;
  • knife scissors;
  • operating sling;
  • front hand grip;
  • silencer.
ACCESSORIES
Cleaning rod
Cleaning rod extender
Parade Sling
Bag for 4 magazines
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine  4 pcs
● 5.56x45 mm
Oil can
Packing
umber of rifles in one wooden case, pcs.10
Case dimensions, mm1380 x 572x 387
Weight of the wooden case, kg99
Volume of the wooden case, m30.28
Specifications
AR-M5F
Calibre, mm5.56
Cartridge, mm5.56x45
Fire modesingle and automatic
Rate of fire, rounds/min600
Practical rate
● Automatic fire, rounds/minup to 100
● Single fire, rounds/minup to 40
Muzzle velocity, m/s
● Bullet type M 193910
● Bullet type SS 109870
Sighting range, mup to 800
Maximum firing range, m1350
Effective firing range, m500
Magazine capacity, rounds30
Barrel length, mm415
Sight radius, mm370
Overall length, mm
● With extended butt970
● With folded butt in travelling position720
Weight, kg
● Rifle without magazine4.0
● Loaded magazine0.58
Principle of functiongas operated automatic rifle
System life, rounds15 000
