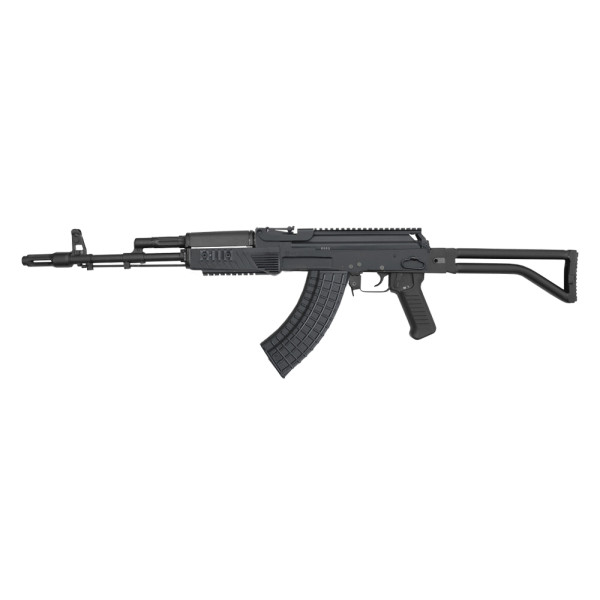

7.62x39 mm AR-M5F

Main Features:

Gas operated automatic rifle.
Fire mode - single and automatic.
Hot-die forged and milled receiver for increased durability and service life.
Chromium plated Barrel bore and chamber.
FRP (fiber glass reinforced polycaproamide) Lower and Upper hand guards, Pistol grip, 30-round Magazine – heat/cold resistant with antiglare matte finish.
Right-side folding tubular steel enforced butt with a quick release/lock mechanism.
MIL-STD (1913) Picatinny rails integrated on three sides of the Lower handguard (at the 3, 6, and 9 o'clock positions).
MIL-STD (1913) Picatinny rail with 195 mm length over the receiver to accommodate any variety of scopes
Ambidextrous safety lever for rapid fire mode switchover.
Possibility of knife-scissors attachment.
Provision for attachment of 40x46mm ARSENAL UBGL-M6 and UBGL-M8, 40mm ARSENAL UBGL-1 Underbarrel Grenade Launchers, and firing with them.

Optional Extras (Paid Separately):

black polymer magazines for 40 cartridges (for 7.62x39 mm);
front sight adjusting kit (in the ratio 1:10);
luminous spots on the sight;
set for magazines coupling;
blank fire attachment;
knife scissors;
operating sling;
front hand grip;
silencer.

ACCESSORIES
Cleaning rod
Cleaning rod extender
Parade Sling
Box with accessories (brush, drift, slush brush, screwdriver)
Magazine 4 pcs
● 7.62x39 mm
Bag for 4 magazines
Oil can

ACCESSORIES

Cleaning rod

Cleaning rod extender

Parade Sling

Box with accessories (brush, drift, slush brush, screwdriver)

Magazine 4 pcs

● 7.62x39 mm

Bag for 4 magazines

Oil can

Packing
Number of rifles in one wooden case, pcs.	10
Case dimensions, mm	1380 x 572x 387
Gross Weight of the wooden case, kg	99
Volume of the wooden case, m³	0.28

Packing

Number of rifles in one wooden case, pcs.

Case dimensions, mm

1380 x 572x 387

Gross Weight of the wooden case, kg

Volume of the wooden case, m³

0.28

Specifications	AR-M5F
Calibre, mm	7.62
Cartridge, mm	7.62x39
Fire mode	single and automatic
Rate of fire, rounds/min	600
Practical rate
● Automatic fire, rounds/min	up to 100
● Single fire, rounds/min	up to 40
Muzzle velocity, m/s	710
Sighting range, m	up to 800
Maximum firing range, m	1350
Effective firing range	400
Magazine capacity, rounds	30
Barrel length, mm	415
Sight radius, mm	370
Overall length, mm
● With extended butt	970
● With folded butt in travelling position	720
Weight, kg
● Rifle without magazine	4.0
● 30 round loaded magazine, kg	0.72
Principle of function	gas operated automatic rifle
System life, rounds	15 000

Specifications

AR-M5F

Calibre, mm

7.62

Cartridge, mm

7.62x39

Fire mode

single and automatic

Rate of fire, rounds/min

600

Practical rate

● Automatic fire, rounds/min

up to 100

● Single fire, rounds/min

up to 40

Muzzle velocity, m/s

710

Sighting range, m

up to 800

Maximum firing range, m

1350

Effective firing range

400

Magazine capacity, rounds

Barrel length, mm

415

Sight radius, mm

370

Overall length, mm

● With extended butt

970

● With folded butt in travelling position

720

Weight, kg

● Rifle without magazine

4.0

● 30 round loaded magazine, kg

0.72

Principle of function

gas operated automatic rifle

System life, rounds

15 000
