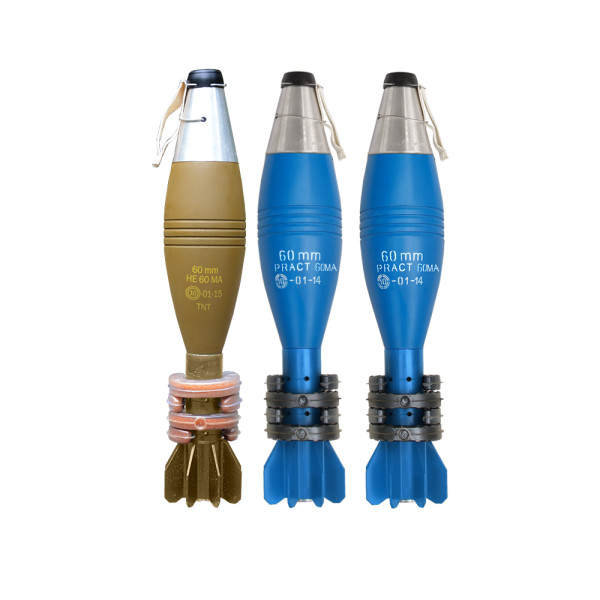

60 mm HE 60MA, PRACT 60MA, PRACT 60MATM

HE 60MA: NSN 1310-50-000-0724

PRACT 60MA: NSN 1310-50-000-0726

PRACT 60MATM: NSN 1310-50-001-4067

The Mortar Bombs HE 60MA, PRACT 60MA and PRACT 60MATM are intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, M-57, M6H and M6C Hirtenberger, etc.

The 60 mm HE 60MA, due to its streamlined design of the body and well calculated and shaped fin stabilizer assy, reaches 3130 m firing range which is among the longest and most accurate ranges known for such type of ammunition.

Thanks to their streamlined hull design and well-calculated and shaped stabilizer blade, the 60 mm PRACT 60MA  and 60 mm PRACT 60MATM reaches a range of 1 993 m, which is among the longest and most accurate ranges known for this type of ammunition.

PRACT 60MA and PRACT 60MATM are used for training purposes, their flight ballistic is identical to those of the high explosive version.



Main Features:

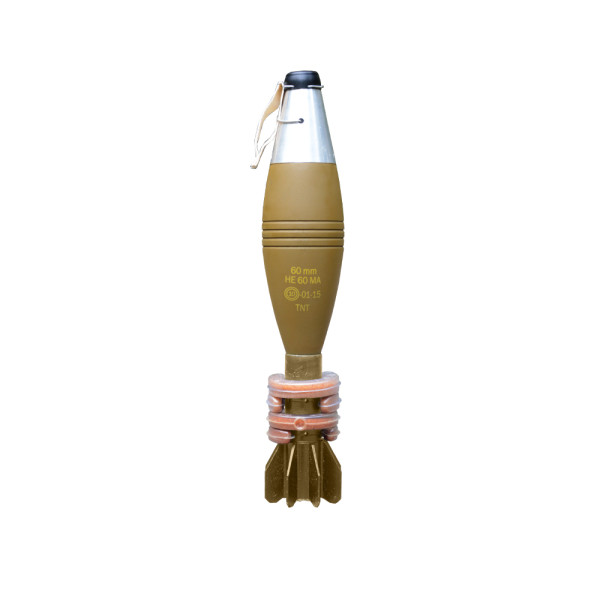

This Mortar Bomb HE 60MA is fuzed with AF621 (Point detonating, super quick action, boresafe type) fuze.

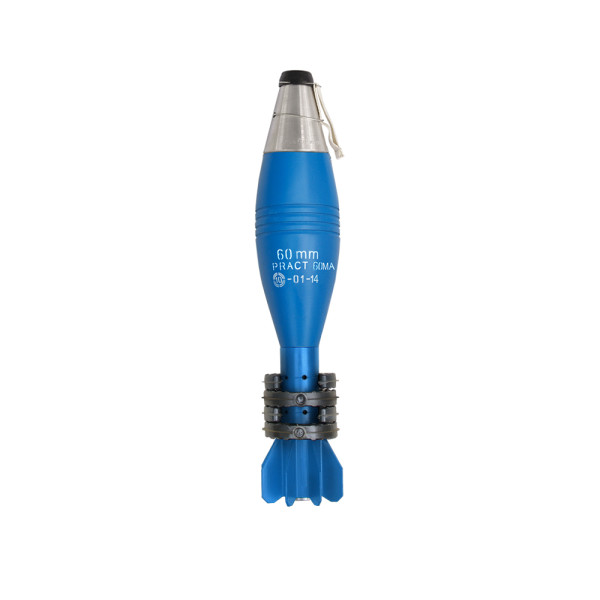

The Mortar Bomb PRACT 60MA is fuzed with Inert fuze.

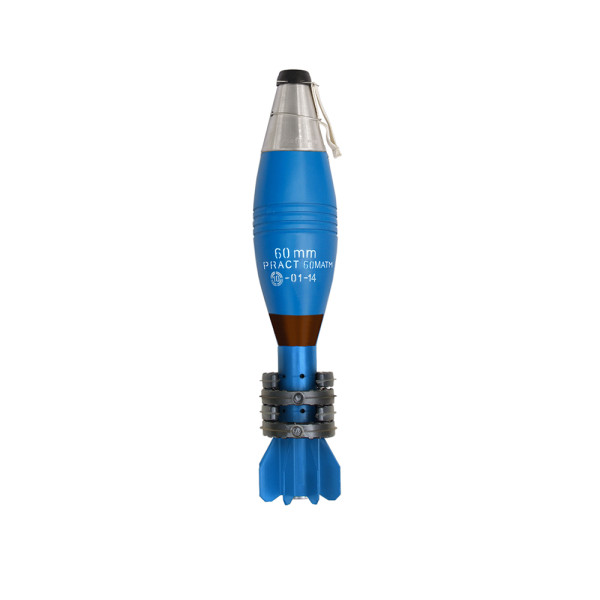

The Mortar Bomb PRACT 60MATM is fuzed with AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.

It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2nd increment charge from 60 mm Commando Mortars!

BALLISTIC DATA
Average max Pressure, bar (piezo)
HE 60MAPRACT 60MAPRACT 60 MATM
640 mm barrel Commando250 (0+2)250 (0+2)250 (0+2)
640 mm, 1000 mm barrel450 (0+4)450 (0+4)250 (0+2)
Average Max Range, m
640 mm barrel Commando1 631 (0+2)1 631 (0+2)1 631 (0+2)
640 mm barrel2 644 (0+4)2 644 (0+4)1 631 (0+2)
1000 mm barrel3 130 (0+4)3 130 (0+4)1 993 (0+2)
Average Muzzle Velocity, m/s
640 mm barrel Commando142 (0+2)142 (0+2)142 (0+2)
- 640 mm barrel195 (0+4)195 (0+4)142 (0+2)
- 1000 mm barrel222 (0+4)222 (0+4)162 (0+2)
Class of explosion hazard:1.2E, UN 0321 AF64, AF66, AF6211.2E, UN 0321 AF64, AF66 and AF621 with dummy fuze 1.3C, UN 04171.2E, UN 0321 AF64, AF66 and AF621 with dummy fuze 1.3C, UN 0417
TECHNICAL CHARACTERISTICS
HE 60MAPRACT 60MAPRACT 60MATM
Body materialSpheroidal graphite Cast IronSpheroidal graphite Cast IronSpheroidal graphite Cast Iron
Length fuzed, mm307 max307 max307 max
Weight fuzed, kg1.6 max1.584 max1.584 max
Weight of explosive charge (TNT), kg0.200 max--
Weight of inert charge, kg-0.200 max0.200 max
Highest Max Pressure, bar (piezo)
● 640 mm barrel Commando290 (0+2)290 (0+2)290 (0+2)
● 640 mm, 1000 mm barrel470 (0+4)290 (0+2)290 (0+2)
Operating Temperature Range, °Cfrom minus 40 to 50from minus 40 to 50from minus 40 to 50
BALLISTIC DATAHE 60MAPRACT 60MAPRACT 60 MATM
FuzeAF64, AF66, AF621AF64, AF66, AF621 or dummy fuzeAF64, AF66, AF621
Packing
One fuzed Mortar Bomb with 4 pcs. Increment charges is packed in a Container; 10 pcs. Containers are arranged in a wooden case.
HE 60MAPRACT 60MAPRACT 60 MATM
Case dimensions, mm420x400x216420x400x216420x400x216
Case weight, kg252525
Case volume, m30.0360.0360.036
