Barrel length, mm
215/215

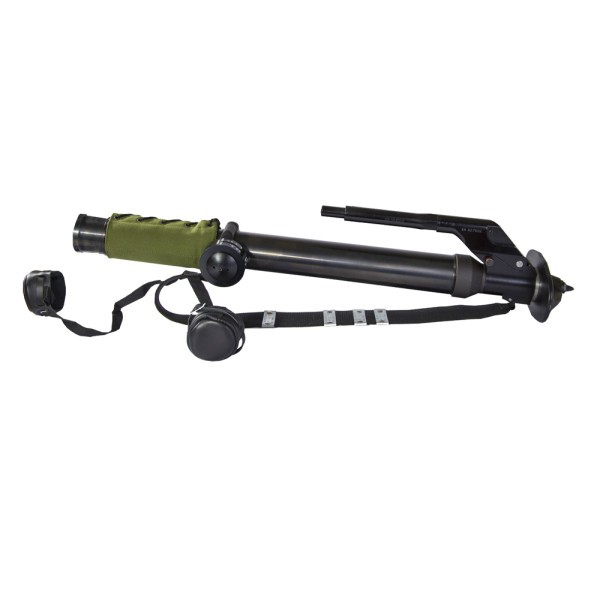

60 mm COMMANDO Mortar M60CMA
NSN: 1010-50-000-0808
The 60 mm Commando Mortar M60CMA is a portable and with light weight weapon, designed for paratroops and special forces.
Overview
SPTA set:
Spare parts – firing pin assy., firing spring;
Tools – screw key SW 17 mm, bent wrench for hexagon socket head screws SW 5 mm, bent wrench for hexagon socket head screws SW 6 mm;
Accessories:
Oil can, two-part wiper arm, barrel brush, aiming device, carrying strap (aiming strap) with caps, barrel protective case, bag for SPTA set;
Main Features:
- High firing capacity and accuracy with quick and easy operation;
- Portable by one soldier and with extremely light weight – which make it suitable for paratroops special unit missions, especially on difficult terrain;
- Capability of direct and ballistic-trajectory fire;
- Pressed trigger - suitable for running with loaded weapon and rapid opening of fire at desire position;
- Easy laying of the weapon at required angle of elevation using the special marking on the carrying strap;
- Can fire all types of all standard 60 mm Mortar Bombs (with max operating gas pressure up to 250 bar), and Mortar bombs specially designed by ARSENAL JSCo for Commando type Mortars: 60 mm HE 60C, HEI 60C, PRACT 60C, TB 60C, SMK 60CRP,
Optional Extras (Paid Separately):
*Extra (paid separately): haver sac for 6 Mortar Bombs
|
|---|
| 6 pcs. Mortars are packed in a wooden case |
| Wooden case dimensions, mm | 1240x640x440 |
| Wooden case gross weight, kg | 88 |
| Wooden case volume, m3 | 0.35 |
| *Packing of haver sack 18 pcs. in wooden case |
| Wooden case gross weight, kg | 60 |
| Wooden case dimension, mm | 1240х640х440 |
| Wooden case volume, m3 | 0.35 |
|
|---|
| Calibre, mm | 60 |
| Weight, kg | 5.7 |
| Overall length, m | 815 |
| Rate of fire, rounds/min. | 30 |
| Max average gas pressure, bar | 250 |
| Highest max gas pressure, bar | 290 |
| Max range of fire (with HE 60MA), m | 1631 |
| Max range of fire (with HE 60C, HEI 60C), m | 2347 |
| Max range of fire (with TB 60C, SMK 60CRP), m | 2253 |
| Ammunition | |
