60 mm TB 60

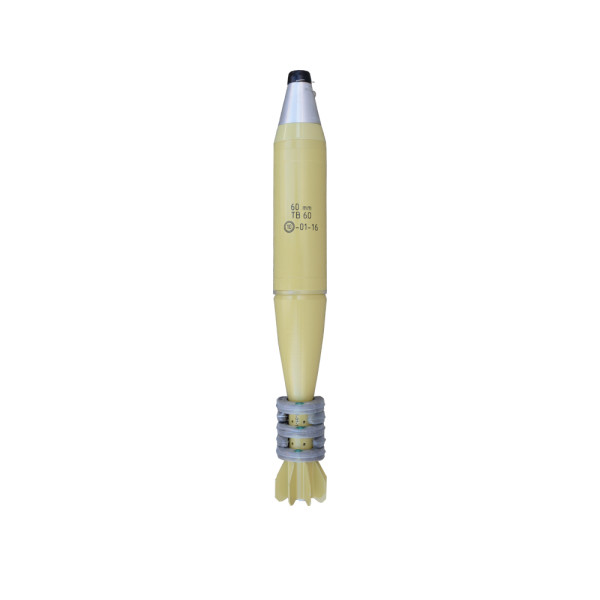

60 mm Thermobaric Mortar Bombs TB 60

NSN: 1310-50-001-2473

The Thermobaric Mortar Bomb TB 60 is intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, M-57, M6H and M6C Hirtenberger, etc., and designed for combined defeating, both by air-blast and thermal action, of enemy manpower in urban areas, fortifications, transport means, and in the open.

Overview

Upon impacting a target, the fuze AF610 gets activated and initiates the bursting charge which, in its turn, disperses the thermobaric composition TBC-2. The thermobaric composition TBC-2 interacts with the oxygen from the air; an air-fuel composition is generated which detonates from the bursting charge. A zone characterized with overpressure and intense heat is created in the area.

his Mortar Bomb is fuzed with AF610 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m).

It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2^nd increment charge from 60 mm Commando Mortars!

When firing with Mortars M2 and M19 do not fire over charge 4!

BALLISTIC DATA Average Maximum Pressure, bar (piezo)	TB 60
640 mm barrel Commando 250 (0+2)	250 (0+2)
640 mm barrel 450 (0+4)	450 (0+4)
1 000 mm barrel 540 (0+5)	540 (0+5)
Average Max Range, m
640 mm barrel Commando	1 578 (0+2)
640 mm barrel	2 710 (0+4)
1 000 mm barrel	3 738 (0+5)
Average Muzzle velocity, m/s
640 mm barrel Commando	130 (0+2)
640 mm barrel	183 (0+4)
1 000 mm barrel	249 (0+5)
Class of explosion hazard, UN Code	1.2E, UN 0321

BALLISTIC DATA

Average Maximum Pressure, bar (piezo)

TB 60

640 mm barrel Commando 250 (0+2)

250 (0+2)

640 mm barrel 450 (0+4)

450 (0+4)

1 000 mm barrel 540 (0+5)

540 (0+5)

Average Max Range, m

640 mm barrel Commando

1 578 (0+2)

640 mm barrel

2 710 (0+4)

1 000 mm barrel

3 738 (0+5)

Average Muzzle velocity, m/s

640 mm barrel Commando

130 (0+2)

640 mm barrel

183 (0+4)

1 000 mm barrel

249 (0+5)

Class of explosion hazard, UN Code

1.2E, UN 0321

TECHNICAL CHARACTERISTICS	TB 60
Body material	Aluminum alloys
Length fuzed, mm	474 max
Weight fuzed, kg	1.9 max
Payload	Thermobaric composition TBC-2
Highest Max Pressure, bar (piezo)
● 640 mm barrel Commando	290 (0+2)
● 640 mm barrel	500 (0+4)
● 1 000 mm barrel	600 (0+5)
Fuze AF610 arming distance, m	40
Operating Temperature Range, °C	from minus 40 to 50

TECHNICAL CHARACTERISTICS

TB 60

Body material

Aluminum alloys

Length fuzed, mm

474 max

Weight fuzed, kg

1.9 max

Payload

Thermobaric composition TBC-2

Highest Max Pressure, bar (piezo)

● 640 mm barrel Commando

290 (0+2)

● 640 mm barrel

500 (0+4)

● 1 000 mm barrel

600 (0+5)

Fuze AF610 arming distance, m

Operating Temperature Range, °C

from minus 40 to 50

Packing	TB 60
Type	One fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 11 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm	600x325x260
Case weight, kg	34
Case volume, m³	0.051

Packing

TB 60

Type

One fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 11 pcs. Containers are arranged in a wooden case.

Wooden case dimensions, mm

600x325x260

Case weight, kg

Case volume, m³

0.051
