Mortars

60 mm M60MA

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

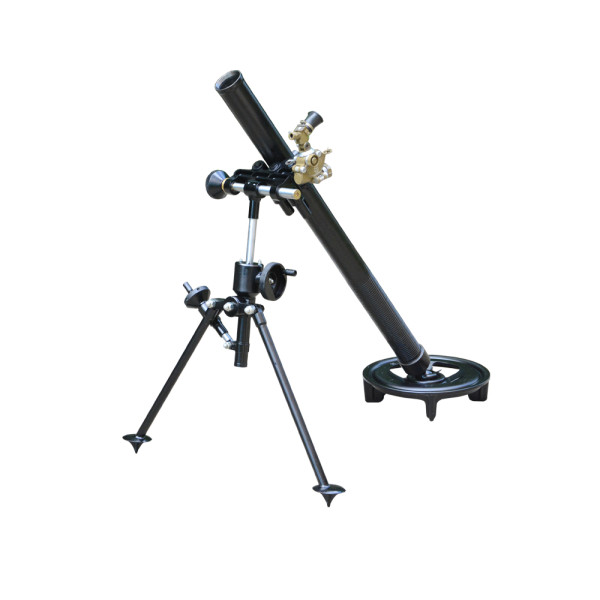

60 mm Mortar M60MA

NSN: 1010-50-000-0767

The 60 mm Mortar M60MA Long Range is used:
to support its own army units using indirect fire;
to destroy, by curved-trajectory fire, the enemy manpower in open, in light field shelters and trenches, as well as in counter scraps;
against light armoured targets;
for creating a smoke screen and terrain illumination.

Overview

SPTA set:

Spare parts – firing pin; retaining ring; O – ring; leather rings - set, o-ring;
Tools – lever, breechblock key, bent wrench for hexagon socket head screws
SW 6mm;
Accessories:
2 pcs. canvas carriers, haversack for ammunition, oil can, bag for spare parts, barrel brush with extension, muzzle cover.

Main Features:

Perfect weapon for different combat operations;
High firing capacity and accuracy;
Easy operation and maintenance.

Optional Extras (Paid Separately):

2 pcs. aiming posts; control quadrant for the Mortar KM-1

Packing
2 pcs. in a wooden case
Net weight, kg	50
Gross weight, kg	98
Case dimension, mm	1435x640x440
Case capacity, m³	0.40

SHOOTING RANGE AND PRECISION 60 mm HE 60LDMA, PRACT 60LDMA RANGE TABLE
Charge No	Muzzle velocity, m/s	Range, m	Max. pressure, bar (piezo)
0	79	194-565	125
1	127	445-1298	175
2	162	680-1984	250
3	196	960-2797	350
4	224	1197-3483	450
5	249	1395-4058	550

SHOOTING RANGE AND PRECISION 60 mm HE 60MA, PRACT 60MA RANGE TABLE
Charge No	Muzzle velocity, m/s	Range, m	Max. pressure, bar (piezo)
0	67	147-430	125
1	121	427-1246	175
2	162	683-1993	250
3	195	898-2619	350
4	222	1074-3130	450

Specifications	M60MA
Calibre, mm	60
Barrel length, mm	1000
Base plate diameter, mm	350
Weight
● Total (with Mortar Sight), kg	19.6
● Barrel plate assy, kg	6.3
● Base plate assy, kg	4.3
● Bipod assy, kg	8.0
● Sight MUM-706M, kg	1.0
Elevation range, mils	700-1500
Traverse range, mils	220
Rate of fire, rounds/min
● With correction of fire direction	6
● Without correction of fire direction	24
Ammunition	60 mm HE 60MA, HE 60LDMA, PRACT 60MA, PRACT 60LDMA, SMK 60RP, TB60, ILL60
Max range of fire (with HE 60LDMA), m	4060
Max range of fire (with HE 60MA), m	3130
Min range of fire, m	150
Max operating gas pressure, bar	650
