60 mm Mortar Bombs

60 mm SMK 60RP

60 mm SMK 60RP

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

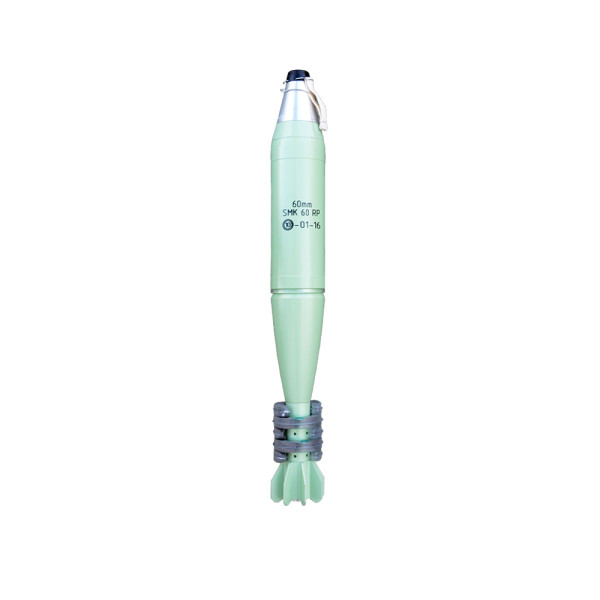

60 mm Smoke Mortar Bomb SMK 60RP

NSN: 1310-50-001-3045



The 60 mm Smoke Mortar Bomb SMK 60RP is designed for marking objects, targets, creating a smoke screen in order to mask friendly units’ operations and is used for facilitation of the tactical deployment of friendly troops, as well as evading enemy fire. The smoke screen from the Bomb is also used for suppression of enemy surveillance and reconnaissance means, prevention from aimed fire.





Overview

Performance:
- Immediate creation of dense smoke screen;

- Bigger smoke effect, compared to white phosphorous ammunition, due to 3 times bigger quantity of red phosphorous load.

- Bigger density of the smoke screen, compared to white phosphorous ammunition.

- Provides igniting action.

This Mortar Bomb can be fuzed with:

AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.

AF621(Point detonating, super quick action, boresafe type) fuze.

The 60 mm Smoke Mortar Bomb SMK 60RP is intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, M-57, M6H and M6C Hirtenberger, etc.

It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2nd increment charge from 60 mm Commando Mortars!

When firing with Mortars M2 and M19 do not fire over charge 4!

BALLISTIC DATA
Average Maximum Pressure, bar (piezo)
AF66AF621
640 mm barrel Commando250 (0+2)250 (0+2)
640 mm barrel450 (0+4)450 (0+4)
1000 mm barrel540 (0+5)540 (0+5)
Average Max Range, m
640 mm barrel Commando1 578 (0+2)1 578 (0+2)
640 mm barrel2 710 (0+4)2 710 (0+4)
1000 mm barrel3 738 (0+5)3 738 (0+5)
Average Muzzle velocity, m/s
640 mm barrel Commando130 (0+2)130 (0+2)
640 mm barrel183 (0+4)183 (0+4)
1000 mm barrel249 (0+5)249 (0+5)
TECHNICAL CHARACTERISTICS
AF66AF621
Body materialAluminium alloysAluminium alloys
Length fuzed, mm481 max474 max
Weight fuzed, kg1.9 max1.9 max
Smoke composition typeSMK-1 (based on red phosphorous)SMK-1 (based on red phosphorous)
Weight of SMK-1, kg0.700 max0.700 max
Time of smoke creation, s7 max7 max
Duration of smoke emission, snot less than 50not less than 50
Volume of smoke cloud, m314.0x10314.0x103
Highest Max Pressure, bar (piezo)
● 640 mm barrel Commando290 (0+2)290 (0+2)
● 640 mm barrel500 (0+4)500 (0+4)
● 1000 mm barrel600 (0+5)600 (0+5)
Fuze AF 66 arming distance, mnot less than 40-
Operating Temperature Range, °С from minus 40 to 50 from minus 40 to 50
Packing
TypeOne fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 11 pcs. Containers are arranged in a wooden case.
Wooden case dimensions, mm600x325x260
Case weight, kg34
Case volume, m30.051
Class of explosion hazard:1.2G, UN 0015
