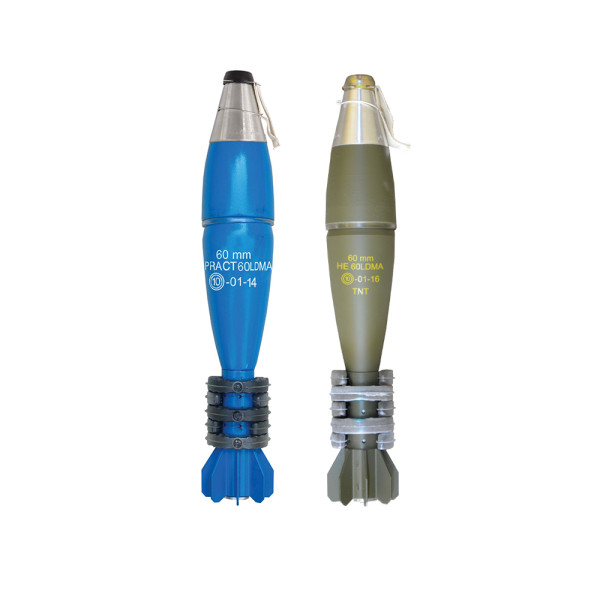

60 mm HE60LDMA and PRACT 60LDMA

60 mm Mortar Bombs HE 60LDMA and PRACT 60LDMA

HE 60LDMA: NSN 1310-50-000-0725

PRACT 60LDMA: NSN 1310-50-000-0727

The Mortar Bomb HE 60LDMA is intended to be used with any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA, M60MA, M2 and M19, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, MO-60-63, 60 mm M-57, M6H and M6C Hirtenberger, etc., and designed for fighting uncovered enemy manpower, as well as unarmored means of transportation.

The Mortar Bomb PRACT 60LDMA is intended to be fired from any type of smooth bore 60 mm Mortars of NATO Standard – such as COMMANDO Mortar M60CMA1, M60MA, BRANDT model 35, Tampella, Thompson Houston – Hotchkiss – Brandt Commando, MO-60-63, 60 mm M-57, M6H and M6C Hirtenberger, etc., and used for training purposes. It has an inert load and its flight ballistics are identical to those of the high explosive version.

The 60 mm HE 60LDMA and PRACT 60LDMA, due to its streamlined design of the body and well calculated and shaped fin stabilizer assy, reaches 4 058 m firing range which is among the longest and most accurate ranges known for such type of ammunition.

Main Features:

This Mortar Bombs are fuzed with AF66 (Point detonating, super quick action, boresafe type, muzzle safety distance 40 m) fuze.

It is absolutely prohibited to fire any type of Mortar bombs with bigger than 2^nd increment charge from 60 mm Commando Mortars!

When firing with Mortars M2 and M19 do not fire over charge 4!

BALLISTIC DATA Average Maximum Pressure, bar (piezo)	HE 60LDMA	PRACT 60LDMA
640 mm barrel Commando	250 (0+2)	250 (0+2)
640 mm barrel	450 (0+4)	450 (0+4)
1000 mm barrel	540 (0+5)	540 (0+5)
Average Max Range, m
640 mm barrel Commando	1 577 (0+2)	1 577 (0+2)
640 mm barrel	2 797 (0+4)	2 797 (0+4)
1 000 mm barrel	4 058 (0+5)	4 058 (0+5)
Average Muzzle Velocity, m/s
640 mm barrel Commando	140 (0+2)	140 (0+2)
640 mm barrel	196 (0+4)	196 (0+4)
1000 mm barrel	249 (0+5)	249 (0+5)

BALLISTIC DATA

Average Maximum Pressure, bar (piezo)

HE 60LDMA

PRACT 60LDMA

640 mm barrel Commando

250 (0+2)

640 mm barrel

450 (0+4)

1000 mm barrel

540 (0+5)

Average Max Range, m

640 mm barrel Commando

1 577 (0+2)

640 mm barrel

2 797 (0+4)

1 000 mm barrel

4 058 (0+5)

Average Muzzle Velocity, m/s

640 mm barrel Commando

140 (0+2)

640 mm barrel

196 (0+4)

1000 mm barrel

249 (0+5)

TECHNICAL CHARACTERISTICS	HE 60LDMA	PRACT 60LDMA
Body material	Spheroidal Graphite Cast Iron	Spheroidal Graphite Cast Iron
Length of fuzed, mm	365 max	365 max
Weight fuzed, kg	1.960 max	1.960 max
Weight of inert charge, kg	0.300 max	0.300 max
Highest Max Pressure, bar (piezo)
● 640 mm barrel Commando	290 (0+2 )	290 (0+2 )
● 640 mm barrel	500 (0+4)	500 (0+4)
● 1000 mm barrel	600 (0+5)	600 (0+5)
Fuze AF 66 arming distance, m	not less than 40	not less than 40
Operating Temperature Range, °C	from minus 40 to 50	from minus 40 to 50

TECHNICAL CHARACTERISTICS

HE 60LDMA

PRACT 60LDMA

Body material

Spheroidal Graphite Cast Iron

Length of fuzed, mm

365 max

Weight fuzed, kg

1.960 max

Weight of inert charge, kg

0.300 max

Highest Max Pressure, bar (piezo)

● 640 mm barrel Commando

290 (0+2 )

● 640 mm barrel

500 (0+4)

● 1000 mm barrel

600 (0+5)

Fuze AF 66 arming distance, m

not less than 40

Operating Temperature Range, °C

from minus 40 to 50

Packing One fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 10 pcs. Containers are arranged in a wooden case	HE 60LDMA	PRACT 60LDMA
Case dimensions, mm	469x400x220	469x400x220
Case weight, kg	29	29
Case volume, m³	0.041	0.041
Class of explosion hazard, UN Code	1.2E, UN 0321	1.2E, UN 0321

Packing

One fuzed Mortar Bomb with 5 pcs. Increment charges is packed in a Container; 10 pcs. Containers are arranged in a wooden case

HE 60LDMA

PRACT 60LDMA

Case dimensions, mm

469x400x220

Case weight, kg

Case volume, m³

0.041

Class of explosion hazard, UN Code

1.2E, UN 0321
