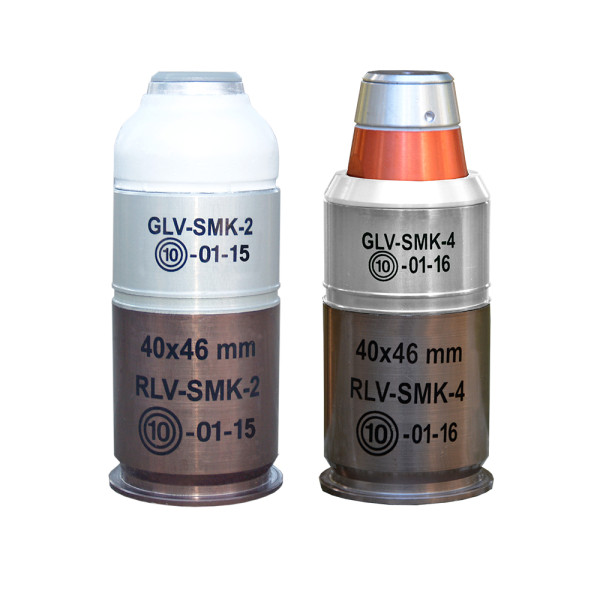

 40x46 mm Round RLV-SMK-2 and RLV-SMK-4 with Smoke Grenade

RLV-SMK-2:  NSN: 1310-50-001-2442

RLV-SMK-4:  NSN: 1310-50-001-4772

The Round RLV-SMK-2 and RLV-SMK-4 are intended to be fired  at distance up to 400 m in order to place a smoke-screen or to mark targets.

Overview

The rounds are designed to be fired from:

- Underbarrel Grenade Launchers: ARSENAL UBGL-M6, UBGL-M7, UBGL-M16; M203; FN GL1; HK269; AG36, and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Stand-alone Grenade Launchers: ARSENAL SAGL, HK169; HK269; FN GL-S; M320; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB);

- Multi-shot Grenade Launchers: Milkor MGL; M32 MGL; ARSENAL MSGL; and other launchers adopted to use lethal ammunition (combat types, e. g. - HEF, HEDP, AD, TB).





Packing
3 metal airtight boxes (40 pcs. in each box), placed in a wooden case (120 pcs. totally)
Wooden case dimensions, mm875x398x206875x398x206
Wooden case weight, kg4747
Wooden case volume, m30.0720.072
TECHNICAL CHARACTERISTICS
RLV-SMK-2RLV-SMK-4
TypeLow Velocity, SmokeLow Velocity , Smoke Bursting Red Phosphorous
Caliber, mm40x4640x46
Overall length, mm103 max103 max
Weight of Round, kg0.225 max0.230 max
Weight of the Grenade, kg0.175 max0.180 max
PayloadRed phosphorous pyrotechnic compositionRed phosphorous pyrotechnic composition
Weight of payload, kg0.0320.045 approx
Scatter radius, mN/Amin 15
Smoke colourWhiteWhite
Time for smoke screen existence, snot less than 20N/A
Propellant chargeDouble base powderDouble base powder
Cartridge case materialAluminum alloyAluminum alloy
Primer typePercussion, Boxer typePercussion, Boxer type
FuzeAF49-Igniting Fuze, point detonating with delay action, distance armed and self-destructionAF411-point detonating with delay action, distance armed and self-destruction
Muzzle Velocity, m/s7676
Maximal firing distance, m400 up to 400
Arming distance, mfrom 9 to 28from 9 to 28
Self-destruction time , sfrom 14 to 19from 14 to 19
Operation Temperature Range, °Cfrom minus 43 to 52from minus 43 to 52
CLASS OF EXPLOSION HAZARD1.4G; UN 03031.4G; UN 0303
Shelf life10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.10 years, if stored in storeroom conditions, in the original non-opened packing of the Manufacturer, strictly observing all handling and storage instructions of the Manufacturer.
