40 & 40x46 mm Underbarrel Grenade Launchers

40 mm UBGL-30

40 mm UBGL-30
40 mm UBGL-30

Caliber

5.56/7.62

Barrel length, mm

215/215

Magazine capacity

30/30

Overview

Features

Specifications

Accessories

Packing

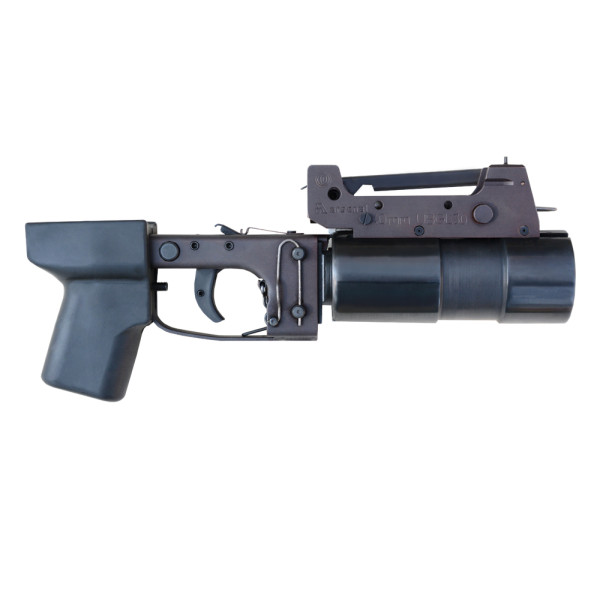

40 mm ARSENAL Underbarrel Grenade Launcher UBGL-30

NSN: 1010-50-001-5960

Overview

The 40 mm ARSENAL Underbarrel Grenade Launcher UBGL-30 is a powerful, individual weapon, designed for destruction of single or group targets of enemy’s manpower in an open area, in trenches and light shelters of field type, as well as reverse slopes, by flat trajectory fire, using different kinds of Rounds of case-less type.

Main Features:

  • Add-on launcher;
  • Flat or curved trajectory fire;
  • Muzzle loading;
  • Ammunition - rounds of case-less type.
ACCESSORIES
Receiver Cover latch unit1
Butt plate with sling1
Bag for launcher1
Bag for 12 grenades1
Brush1
Set of group SPTA for 20 launchers1
Packing
Quantity of the weapons in one wooden case, pcs.20
Gross weight, kg85
Case dimensions, mm1270x573x387
Volume, m30.28
Specifications
UBGL-30

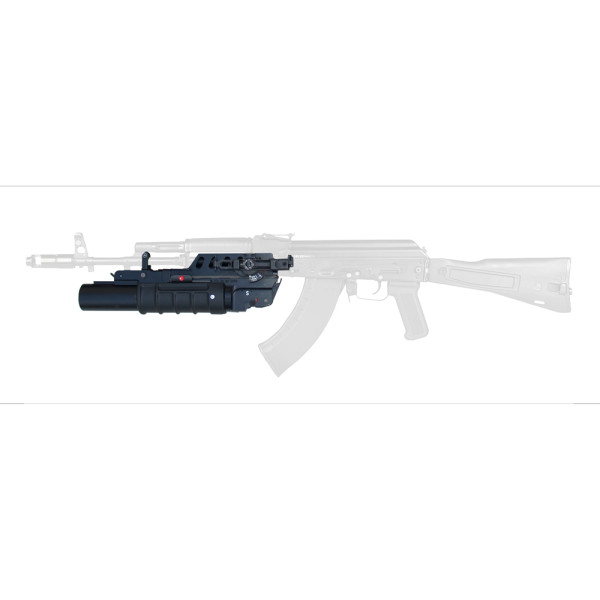

Suitable for attaching to5.45 mm, 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M1, AR-M1F; 5.56 mm and 7.62 mm ARSENAL Assault Rifles AR-M2F, AR-M12F, AR-M7F, AR-M9, AR-M9F, AR-M1F41, etc.; 5.45 mm AK-74 and AKS-74; 5.56 mm AK-101; 7.62 mm AK-103, AKM, AKMS, etc.
Calibre, mm40
AmmunitionRLV-HEF, RLV-HEFJ, RLV-TB, RLV-AD, RLV-P, RLV-SMK, RLV-ILL-WS, RLV-S&F, etc. and all case-less rounds for GP-25
Maximum range, mmUp to 400
Effective range at area targets, mUp to 350
Effective range at point targets, mUp to 150
Muzzle velocity, m/s76
Weight, kg1.5
Practical rate of fire, rounds/minFrom 5 to 6
Overall length, mm281x72x135 - marching position 281x72x196 - combat position
